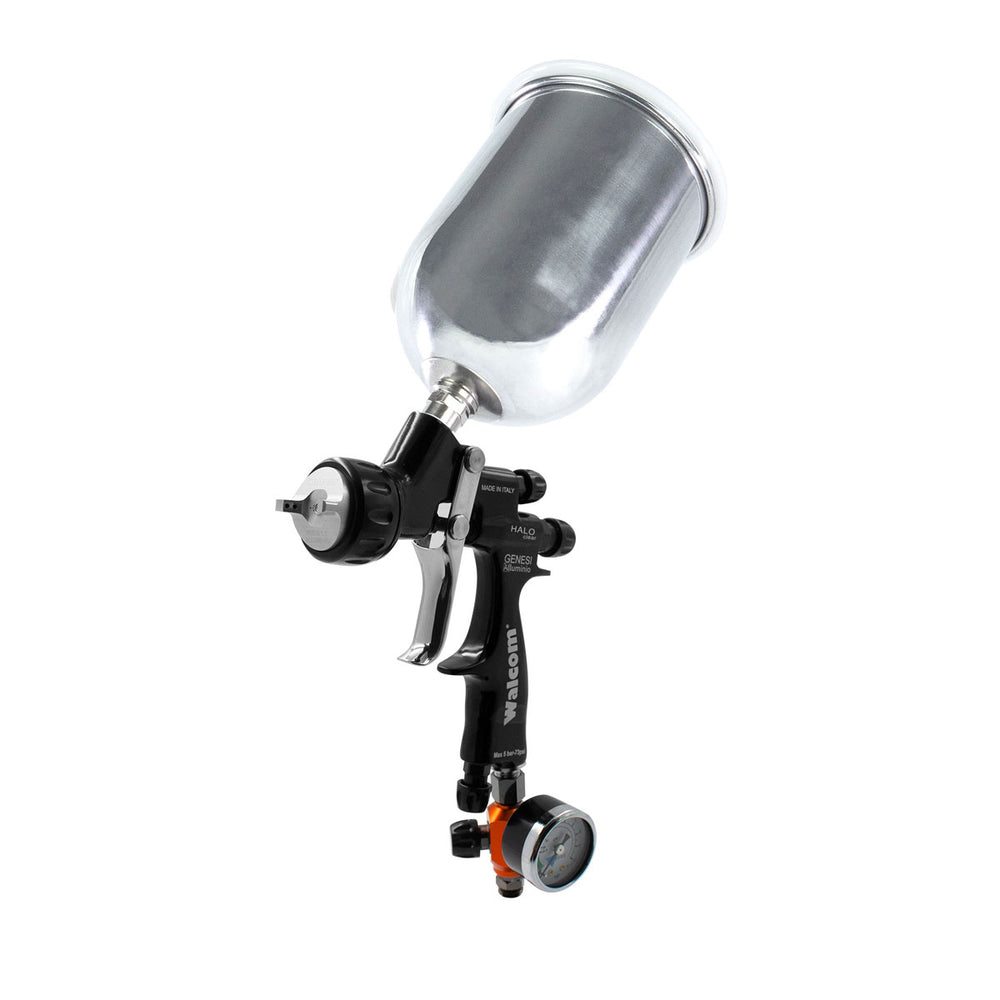

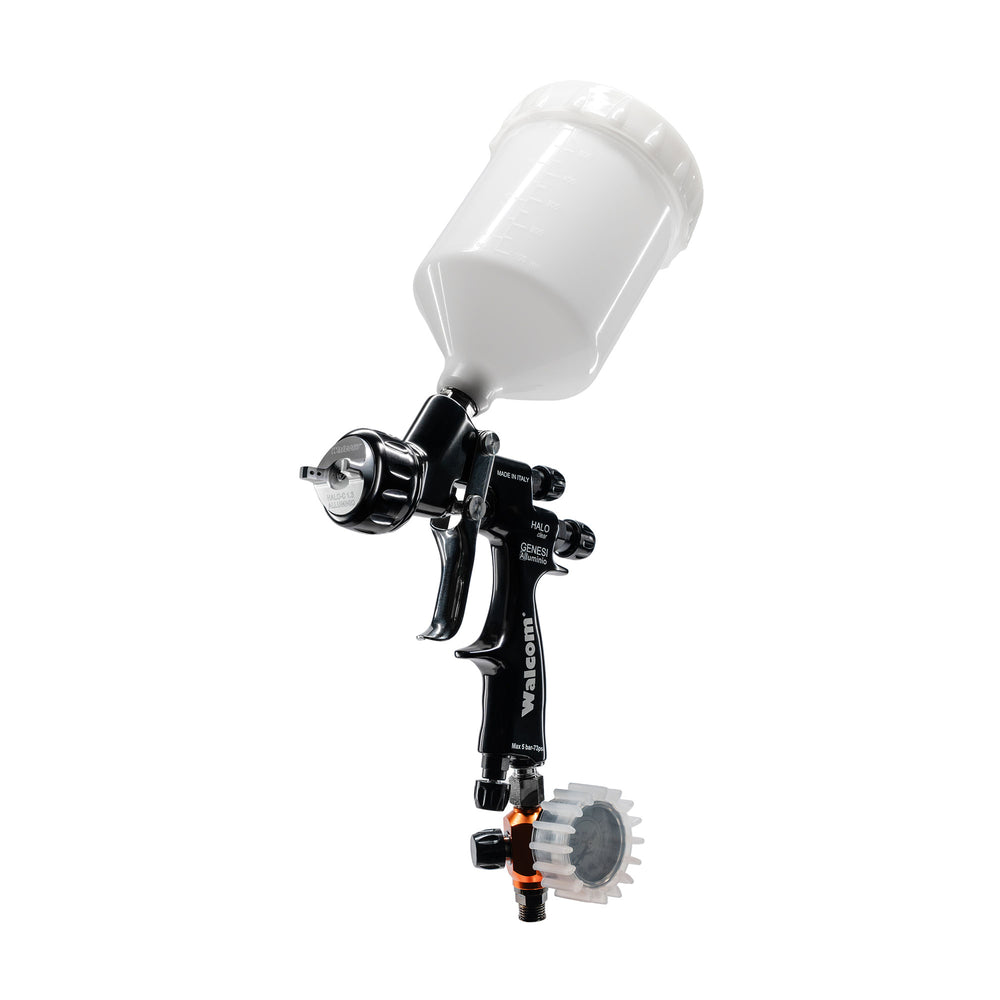

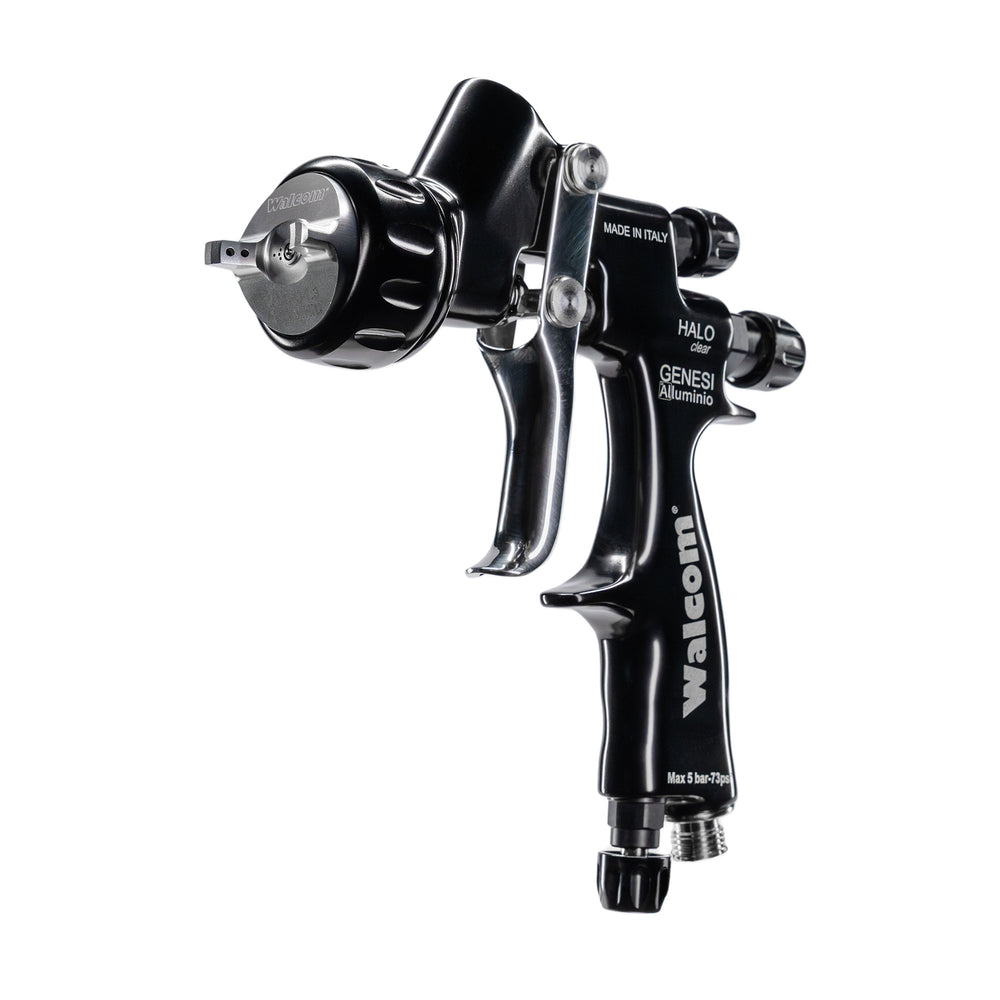

Genesi Alluminio HALO Clear
xGenesi Alluminio HALO clear is the best performing spray gun in our line of products for clear coat and single stage.
HTE high transfer efficiency is an atomization system that combines a higher pressure than the standard hvlp with an equivalent or even higher transfer efficiency, making application easier and faster.
Genesi HTE has been tested by UDRI laboratories and compliant as per California SCQAMD certification.
Genesi HTE clear MP is the new cap, a very technical and closer application, an increased venturi that leads to a very "extended" "mirror" distension of the transparent.
This spray gun is the result of Walcom's research and experience, a company that produces all the components of the airbrush internally, the Carbon Genesis represents the maximum evolution of its category; a body machined in a single step by 5-axis cnc, consisting of a forged aluminum core, carbon overlay for a unique lightness and ergonomics, an exceptional feeling, maximum quality of the result and an efficiency.
Technical data
xRef. W0530**/W0535**
>Body: anodized forged aluminum
Hat and ring: anodized aluminum
Weight: 415 g
Operating pressure: HALO BASE/CLEAR= range 0.5 - 2 bar (7.2 - 29 psi) / compliant max 2 bar (29 psi),
Air consumption: HALO= 350 l/min at 2 bar / 12 cfm at 29 psi,
O nozzle HALO BASE / CLEAR version: 1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.7 - 1.9
Exploded View
xESPLOSO GENESI ALLUMINIO HALO BASE
FIELD OF APPLICATION: SOLVENT AND WATERBORNE BASE COAT
Paint application charts
