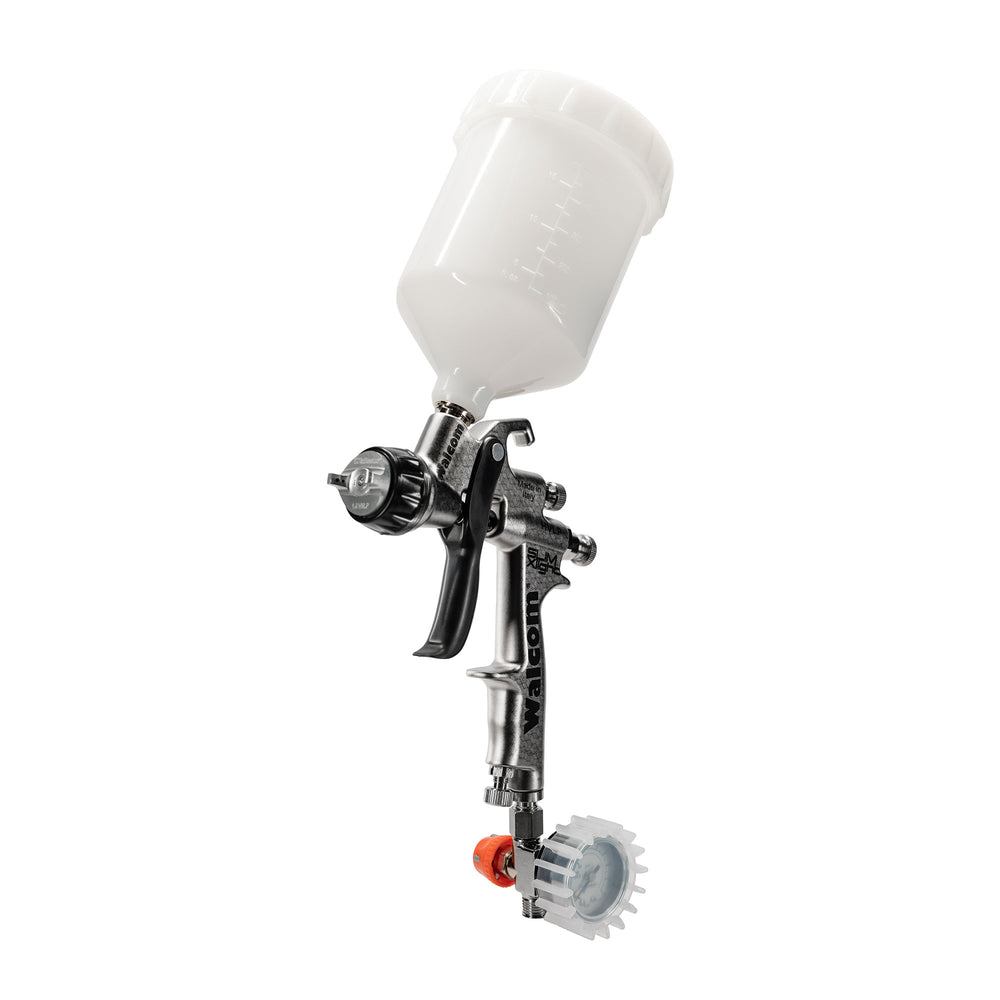

Slim XLIGHT HVLP
Slim XLIGHT HVLP
Slim XLIGHT HVLP

Slim XLIGHT HVLP

The spray gun is constructed with an air valve and needle on a single axis to provide higher performance and greater maintenance simplicity.
SKU: 833010
Availability: In stock
$199.00
$199.00
Please hurry! Only 2000 left in stock
Cup: POM C 680 cc
Pressure gauge: Analogic
Nozzle: 1.0
Subtotal: $199.00

Free Shipping

Free standard shipping on orders over $200

Slim XLIGHT HVLP

Slim XLIGHT HVLP

$199.00
Slim XLIGHT HVLP
Slim XLIGHT HVLP
Slim XLIGHT HVLP

Slim XLIGHT HVLP

$199.00
Cup: POM C 680 cc
Pressure gauge: Analogic
Nozzle: 1.0
Slim XLIGHT HVLP
Slim XLIGHT HVLP
x

The spray gun is constructed with an air valve and needle on a single axis to provide higher performance and greater maintenance simplicity.

Technical data
Technical data
x

Ref. 8230**/8235**

Tank POM C680CC/1000CC/ALUMINUM 750CC

Body: chemically nickeled aluminum - matte finishing



Trigger: PPA & fiber glass



Air cap: “anticorodal” anodized aluminum



Nozzle: AISI 303 stainless steel



Needle-spring: stainless steel



Seal gaskets: PTFE (Teflon)



Weight: 455 g



Operating air pressure: range 0.5 - 2.5 bar / HVLP at 2 bar



Air consumption: 295 l/min a 2 bar



Ø nozzle: 1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 - 2.5



Air inlet pressure regulator with pressure gauge

Product Manual
Product Manual
x

Product manual for Spray Gun

Download
Exploded View
Exploded View
x

ESPLOSO SLIM XLIGHT SUP HVLP

Download

FIELD OF APPLICATION: SOLVENT AND WATERBORNE BASE COAT

The latest addition to the Slim family, Slim XLight combines the traditional reliability of this historic line with new solutions aimed at improving aesthetics, weight, cleanliness and, above all, performance. The matt nickel plating, enriched by a unique laser cutting, offers a guarantee of sealing and durability, the new body, shaped and lightened, makes the spray gun more manageable.

SLIM XLIGHT HALO CUP POM C 680 CC

SLIM XLIGHT HALO CUP POM C 680 CC WITH ANALOGIC PRESSURE GAUGE

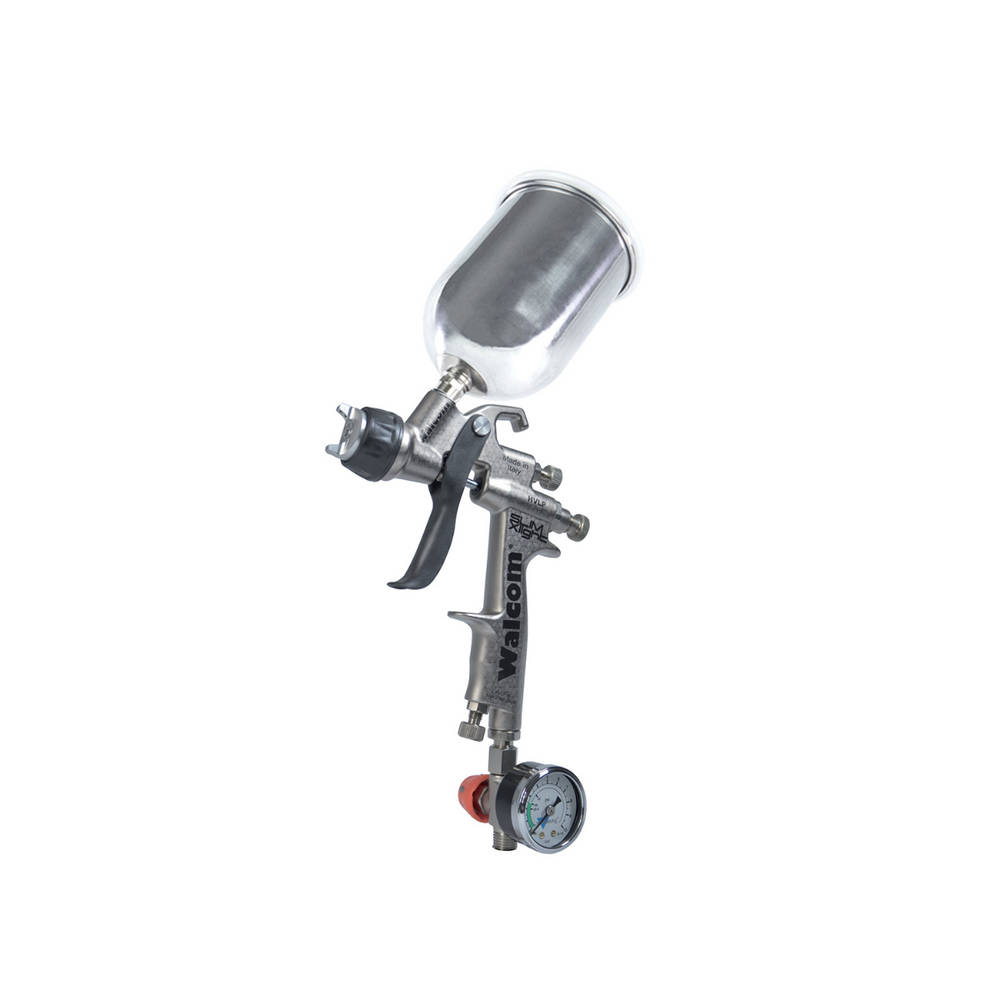

SLIM XLIGHT HALO CUP ALUMINIUM 750 CC

SLIM XLIGHT HALO CUP ALUMINIUM 750 CC WITH ANALOGIC PRESSURE GAUGE

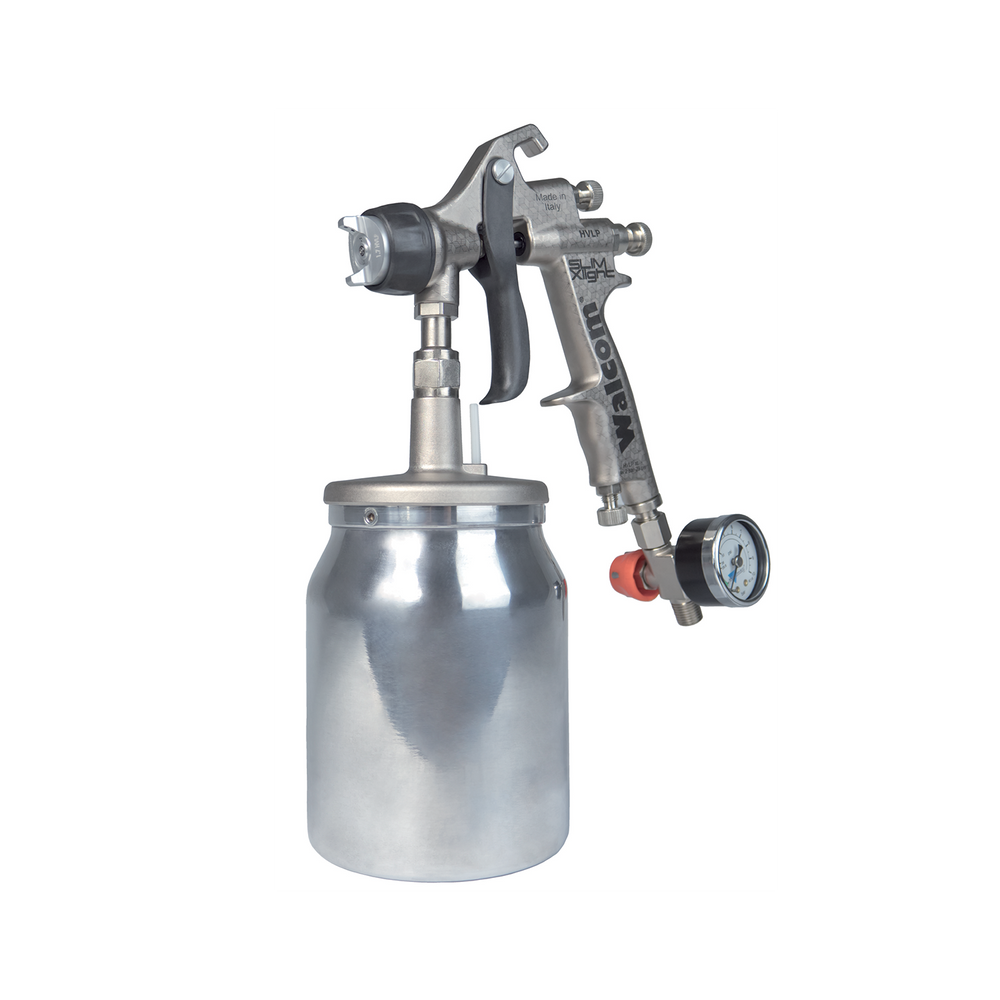

Slim XLIGHT HALO Cup Bayonet Suction Cup 1000 Cc

Slim XLIGHT HALO Cup Bayonet Suction Cup 1000 Cc WITH ANALOGIC pressure gauge

Paint application charts

download
