UNITÉ TD3 PRO
x Système de climatisation et de thermorégulation intégré à la cabine cabine, tuyau IPH inclus.

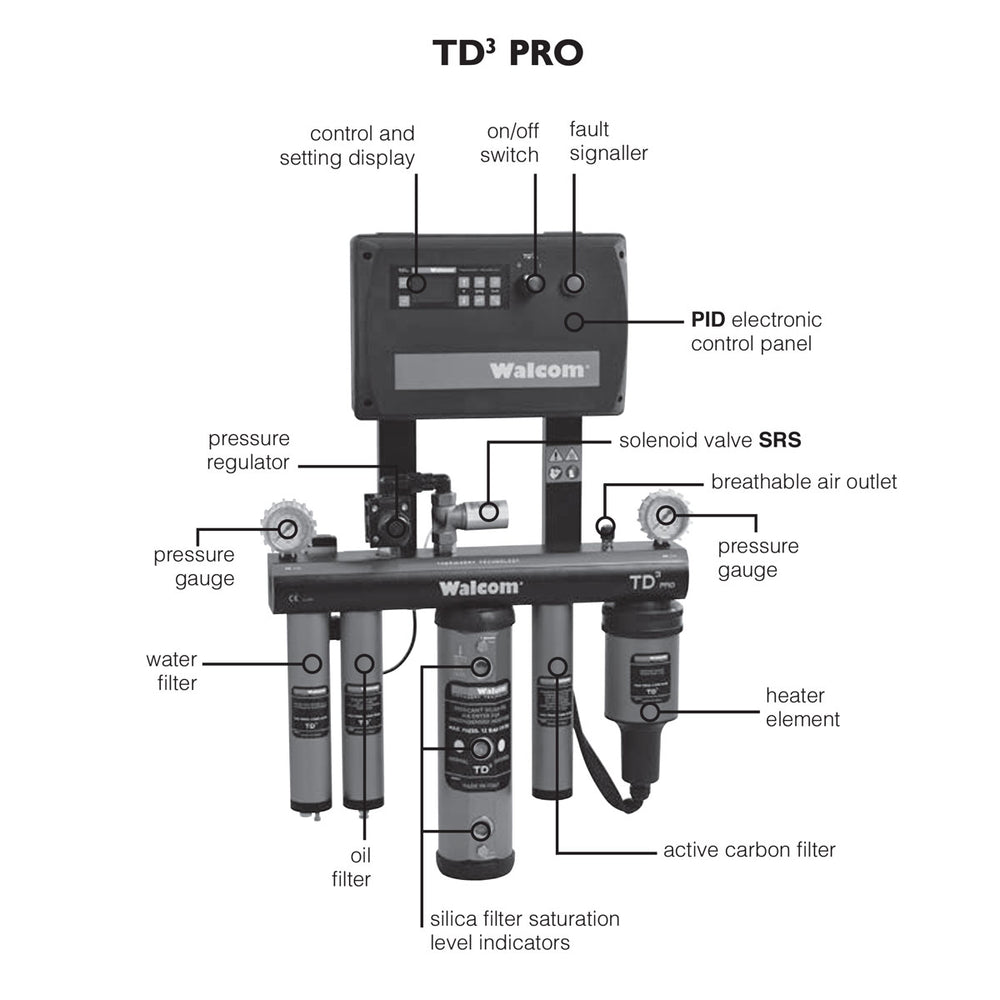

Technical data
x| Synthetic fibre pre-filtering | element that eliminates condensation |
| Automatic drain | with safety rod for manual drain, replace every 12 months |
| De-greaser filter | to eliminate residual pollutants. Manual drain. Replace every 12 months |
| Drying group | with silica gel that reduces residual humidity in compressed air |
| Possibility or silica gel regeneration | with TD3 PRO hot air flow SRS valve. Silica gel lasts max 1 year |
| Active carbon filter | to eliminate all impurities and obtain breathable air |
| Max oil residue | < 0.0003 mg/m3. Replace every 6 months |

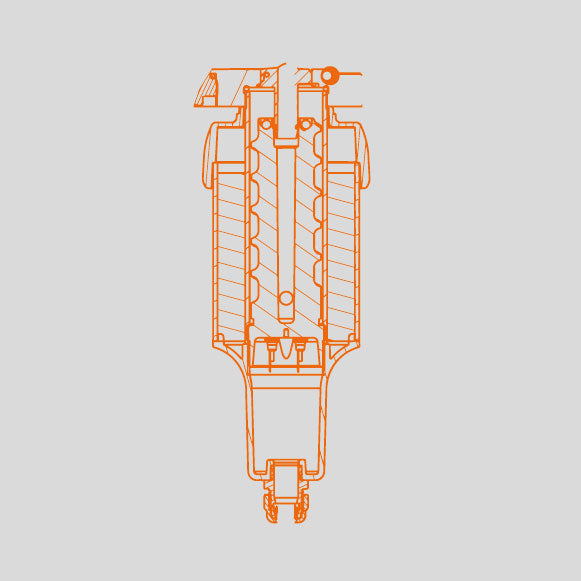

| Heating element | with 1.000 W power controlled by an electronic unit with PID retroactive system and SCR heating power regulation |
| Central body | anodised aluminum |
| Remote control | with 3 preset and editable temperatures |
| Pressure regulator | membrane regulation and automatic decompression |
| Air inlet | F 3/4”; air outlet: F 3/4” |
| Filtering power | water filter 25 μm - oil 0.01 μm - carbons <0.0003 mg/m3 |
| Operating air pressure | 2 - 8 bar / 29 - 116 psi |
| Air consumption | 1200 l/min to 6 bar / 42 cfm at 87 psi |
| Weight | 21 Kg |
Maintenance
x
Suitable fields of application
1 YEAR WARRANTY
