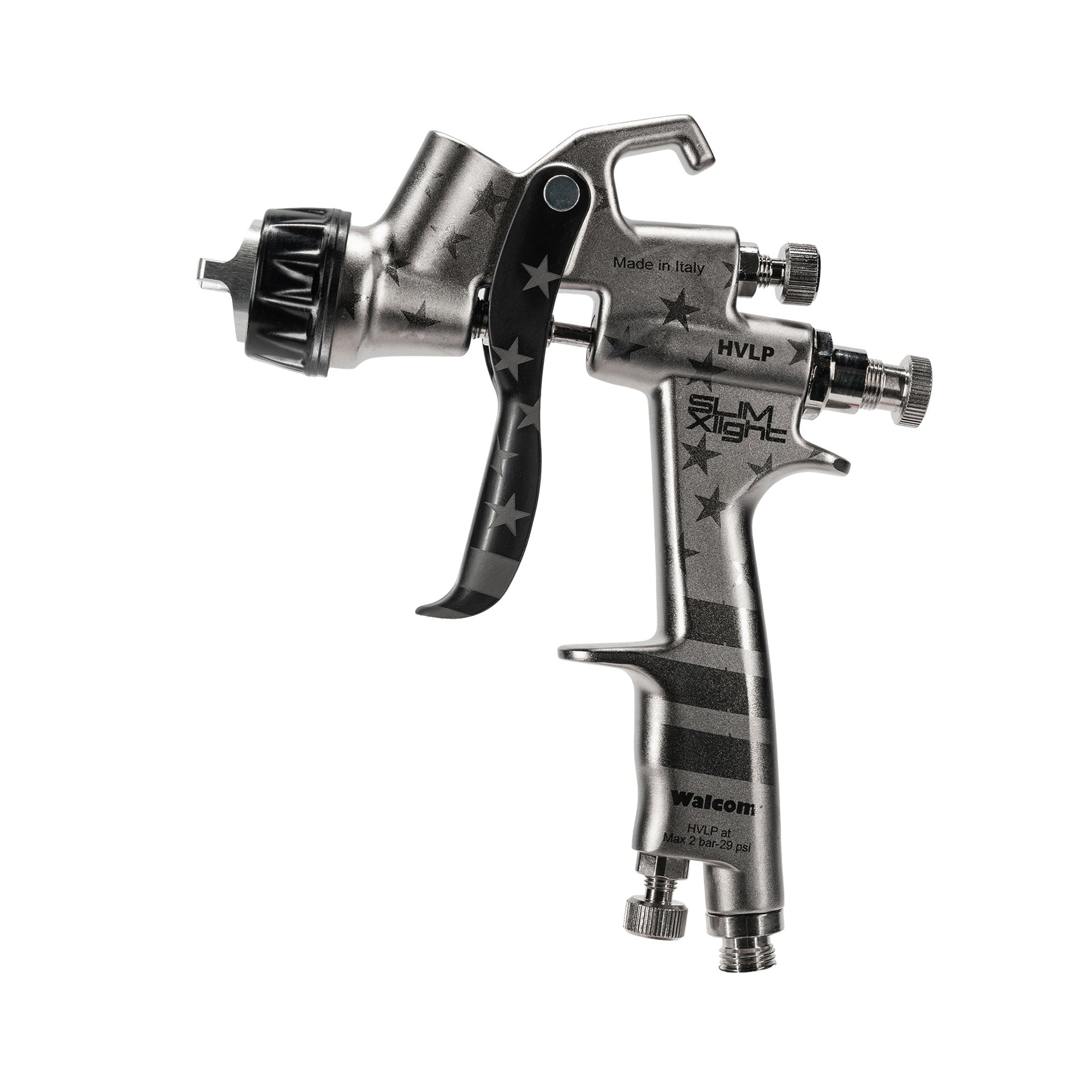

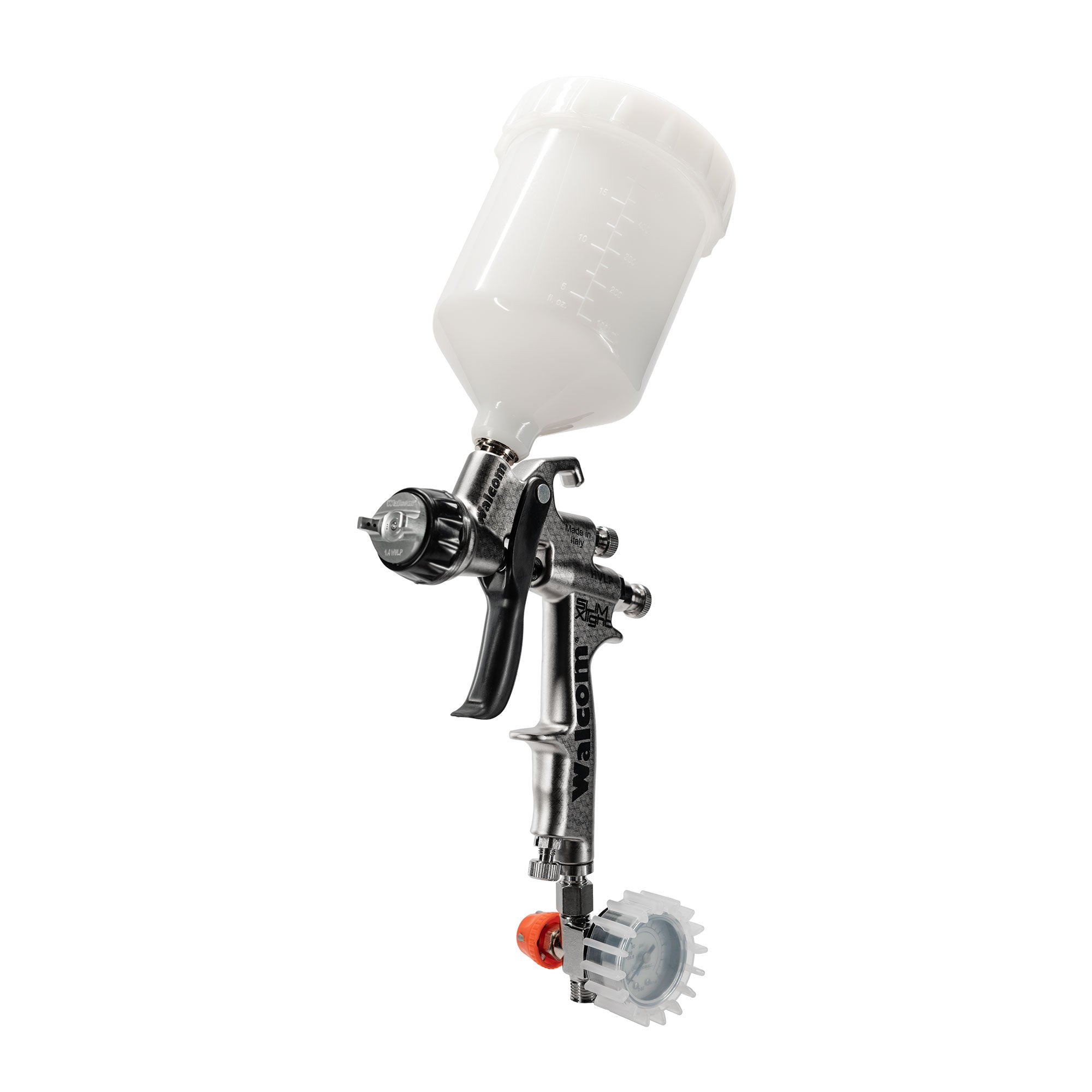

Slim XLIGHT HVLP
xSLIM XLIGHT HVLP is constructed with an air valve and needle on a single axis to provide higher performance and greater maintenance simplicity.
The matt nickel plating, enriched by a unique laser cutting, offers a guarantee of sealing and durability, the new body, shaped and lightened, makes the spray gun more manageable. Primer and sealer spray gun with 455gr of die cast aluminum.ù
HVLP TECHNOLOGY
This spray gun use the standard HVLP technology.
Technical data
x| Body | chemically nickeled aluminum - matte finishing |
| Trigger | PA & fiber glass |
| Air cap | anodized aluminum |
| Air cap ring | PA & fiber glass |
| Nozzle | AISI 303 stainless steel |
| Needle-springs | stainless steel |
| Seal gaskets | self-lubricating PTFE (teflon) |
| Weight | 455 g |
| Operating air pressure | 0.5 - 2.5 bar (7.2 - 36 psi) / HVLP at 2 bar (29 psi) |
| Air consumption | 295 l/min at 2 bar / 10 cfm at 29 psi |
| Ø nozzle Gravity feed | 1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 - 2.5 |
| Ø nozzle Pressure feed | 1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 |
| Ø nozzle Suction feed | 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 |
